Air Conditioner and Heater Plumbing for 2010 Dodge Ram 1500

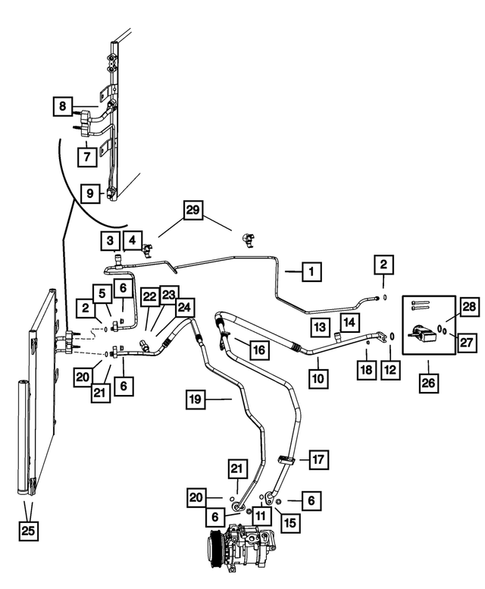

No.
Part # / Description / Price
Price
1
MSRP $164.00
$107.56
2
A/c Line O Ring
Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL 5.7L V8 ENGINES. ALL V6 ENGINES.
Description: Liquid Line
MSRP $18.45
$13.31
MSRP $18.45
$13.31
3
A/c Line Valve Core Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL 5.7L V8 ENGINES. ALL V6 ENGINES.
Description: Core.
4
A/c Check Valve Cap Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL 5.7L V8 ENGINES. ALL V6 ENGINES.
5
A/c Line Gasket Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL 5.7L V8 ENGINES. ALL V6 ENGINES.
Description: Liquid Line
6
Hex Nut-coned Washer Nut And Washer Mopar
Mopar Notes: Engines: 5.7L V8 HEMI HEV ENGINE. ALL 4.7L V8 ENGINES. ALL 5.7L V8 ENGINES. ALL V6 ENGINES.
Description: M8 x 1.25. Liquid Line/Filter Drier to Shock Tower Mounting
MSRP $11.30
$8.17
MSRP $11.30
$8.17
7
A/c Discharge Line, Jumper Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Description: Jumper. Includes: O-Rings. Up to 09/27/10
7
A/c Discharge Line, Jumper Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Description: Jumper. Includes: O-Rings. Up to 09/27/10
8
A/c Line O Ring Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Description: 1/2 After 1-3-08
MSRP $24.45
$17.55
MSRP $24.45
$17.55
10
A/c Suction Line Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Includes: Gasket, O-Rings, Valve Core, Cap, Clips
11
O Ring Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Description: Compressor. Suction Line 5/8`. Liquid Line.
12
A/c Line O Ring, Expansion Valve To Evaporator Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Description: 5/8
MSRP $26.90
$19.30
MSRP $26.90
$19.30
13
A/c Line Valve Core Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Description: After 12-01-03, After 12-12-03
MSRP $31.95
$22.99
MSRP $31.95
$22.99
14
Cap, Service And Charge Valve Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
15
Slim Line Seal Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Description: 5/8". Serviced with Expansion Valve
MSRP $23.55
$17.00
MSRP $23.55
$17.00
18
Hex Nut, Mounting Mopar
Mopar Notes: Engines: 5.7L V8 HEMI HEV ENGINE.
Description: M6. Harmonic Balancer Cover To Cylinder Block
MSRP $15.95
$11.56
MSRP $15.95
$11.56
19
A/c Discharge Line Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Includes: Gaskets, O-Rings, Transducer, Valve Core
20
O Ring Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Description: Discharge line to Compressor
21
Seal Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Description: Liquid Line to Drier
22
A/c Pressure Transducer Valve Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Description: Includes: O-Ring. Up To 06/28/2010
MSRP $175.00
$116.55
MSRP $175.00
$116.55
23
A/c Line O Ring Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Description: For Transducer Valve
MSRP $24.55
$17.61
MSRP $24.55
$17.61
25
Condenser And Trans Cooler Cooler Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Description: Includes: Jumper Tube, Drier - NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab
25
Condenser And Trans Cooler Cooler Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Description: Includes: Jumper Tube, Drier - NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab
25
Condenser And Trans Cooler Cooler Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Description: Includes: Jumper Tube, Drier - NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab
MSRP $944.00
$616.94
MSRP $944.00
$616.94
26
A/c Expansion Valve Kit Mopar
Mopar Description: Includes: Bolts, O-Rings. Up to 03/21/11
MSRP $79.95
$55.14
MSRP $79.95
$55.14
29
Wiring Clip Mopar
Mopar Description: For Electrical Connector Repair Information Visit The Electrical Connector Website
MSRP $6.45
$4.54
MSRP $6.45
$4.54

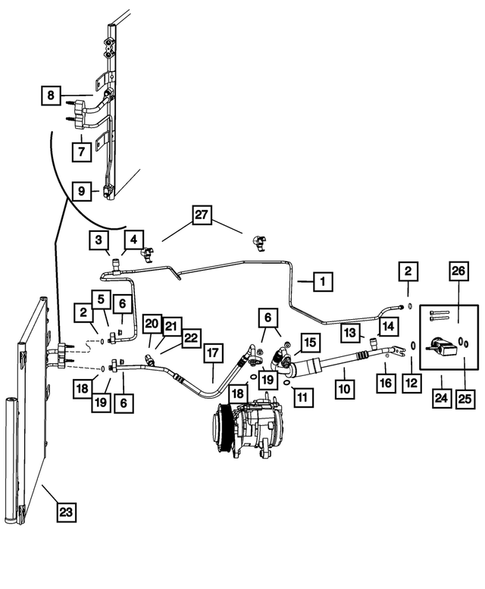

No.
Part # / Description / Price
Price
1
MSRP $164.00
$107.56
2
A/c Line O Ring Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL 5.7L V8 ENGINES. ALL V6 ENGINES.
Description: Liquid Line
MSRP $18.45
$13.31
MSRP $18.45
$13.31
3
A/c Line Valve Core Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL 5.7L V8 ENGINES. ALL V6 ENGINES.
Description: Core.
4
A/c Check Valve Cap Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL 5.7L V8 ENGINES. ALL V6 ENGINES.
5
A/c Line Gasket Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL 5.7L V8 ENGINES. ALL V6 ENGINES.
Description: Liquid Line
6
Hex Nut-coned Washer Nut And Washer Mopar
Mopar Notes: Engines: 5.7L V8 HEMI HEV ENGINE. ALL 4.7L V8 ENGINES. ALL 5.7L V8 ENGINES. ALL V6 ENGINES.
Description: M8 x 1.25. Liquid Line/Filter Drier to Shock Tower Mounting
MSRP $11.30
$8.17
MSRP $11.30
$8.17
8
A/c Line O Ring Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Description: 1/2 After 1-3-08
MSRP $24.45
$17.55
MSRP $24.45
$17.55
12
A/c Line O Ring, Expansion Valve To Evaporator Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Description: 5/8
MSRP $26.90
$19.30
MSRP $26.90
$19.30
16
Hex Nut, Mounting Mopar
Mopar Notes: Engines: 5.7L V8 HEMI HEV ENGINE.
Description: M6. Harmonic Balancer Cover To Cylinder Block
MSRP $15.95
$11.56
MSRP $15.95
$11.56
24
A/c Expansion Valve Kit Mopar
Mopar Description: Includes: Bolts, O-Rings. Up to 03/21/11
MSRP $79.95
$55.14
MSRP $79.95
$55.14
27
Wiring Clip Mopar
Mopar Description: For Electrical Connector Repair Information Visit The Electrical Connector Website
MSRP $6.45
$4.54
MSRP $6.45
$4.54
No.
Part # / Description / Price
Price

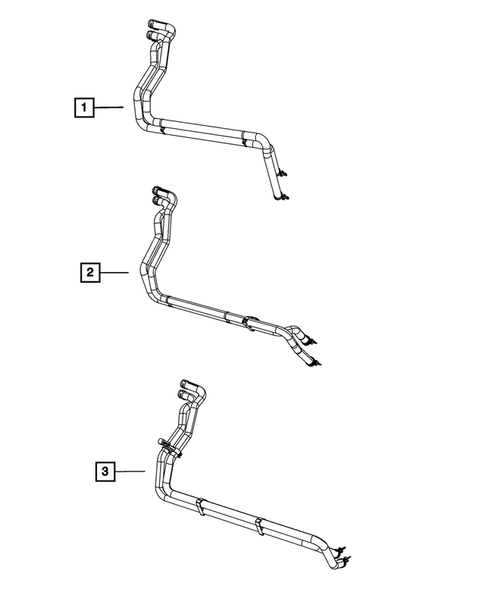

3
Heater Core Hose Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Includes Supply and Return Hose
MSRP $152.00
$99.57
MSRP $152.00
$99.57
