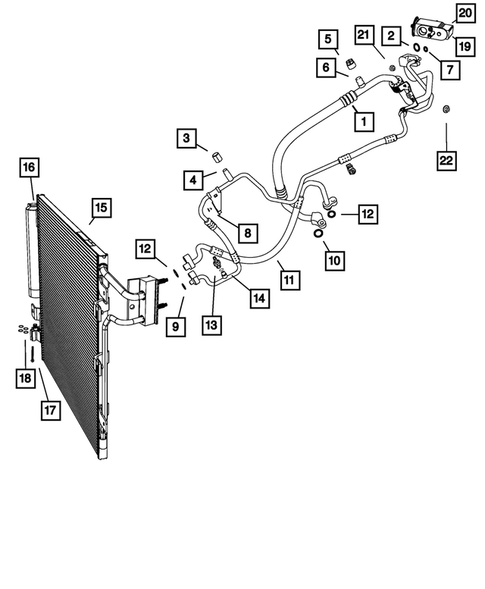

Air Conditioner and Heater Plumbing for 2016 Jeep Wrangler
No.
Part # / Description / Price
Price
N/A
Hex Nut-coned Washer Nut And Washer
Mopar
Mopar Description: M8 x 1.25. Liquid Line/Filter Drier to Shock Tower Mounting
MSRP $11.30
$8.17
MSRP $11.30
$8.17
1
A/c Suction And Liquid Line Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: A/C SUCTION AND LIQUID
MSRP $620.00
$405.48
MSRP $620.00
$405.48
1
A/c Suction And Liquid Line Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: A/C SUCTION AND LIQUID
MSRP $359.00
$234.30
MSRP $359.00
$234.30
2
Slim Line Seal Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: Accumulator End After 5/27/08
MSRP $31.95
$23.05
MSRP $31.95
$23.05
3
A/c Charge Valve Cap Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Up to 05/05/2013
MSRP $31.20
$22.45
MSRP $31.20
$22.45
3
A/c Check Valve Cap Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: Liquid Line
MSRP $4.80
$3.39
MSRP $4.80
$3.39
4
A/c Discharge Line Check Valve Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: Valve Core
MSRP $6.95
$4.90
MSRP $6.95
$4.90
4
A/c Line Valve Core Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: High Side
MSRP $38.10
$27.65
MSRP $38.10
$27.65
5
MSRP $24.20
$17.36
6
A/c Line Valve Core Mopar
Mopar Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Low Side
MSRP $21.25
$15.43
MSRP $21.25
$15.43
7
Sealing Washer Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: Expansion Valve End
MSRP $16.50
$11.98
MSRP $16.50
$11.98
9
Slim Line Seal Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: 8.6MM ID. LHD Only
MSRP $31.60
$22.93
MSRP $31.60
$22.93
10
Sealing Washer, Suction Line To Compressor Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: 5/8". Compressor End. Suction Line. At Compressor.
MSRP $31.60
$22.93
MSRP $31.60
$22.93
11
A/c Discharge Line Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
MSRP $215.00
$143.19
MSRP $215.00
$143.19
12
Sealing Washer Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: Condenser or Compressor End
MSRP $32.25
$23.41
MSRP $32.25
$23.41
13
A/c Pressure Transducer Valve Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: Includes: O-Ring. On Or After 06/28/2010
MSRP $133.00
$87.97
MSRP $133.00
$87.97
14
A/c Line O Ring Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: For Transducer Valve
MSRP $24.55
$17.61
MSRP $24.55
$17.61
15
Air Conditioning Condenser Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine. Transmissions: 6-SPEED MANUAL NSG370 TRANSMISSION. All Automatic Transmissions.
MSRP $622.00
$406.57
MSRP $622.00
$406.57
16
Receiver Drier Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MANUAL NSG370 TRANSMISSION. All Automatic Transmissions.
MSRP $194.00
$127.65
MSRP $194.00
$127.65
17
Screw, Receiver Drier Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine. Transmissions: 6-SPEED MANUAL NSG370 TRANSMISSION. All Automatic Transmissions.
Description: Receiver Drier. Drier to Condenser. Drier Attaching.
MSRP $7.45
$5.26
MSRP $7.45
$5.26
18
Receiver Drier O Ring Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine. Transmissions: 6-SPEED MANUAL NSG370 TRANSMISSION. All Automatic Transmissions.
Description: Drier to Condenser
MSRP $9.45
$6.78
MSRP $9.45
$6.78
19
A/c Expansion Valve Kit Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: Includes: Expansion Valve O-Rings and Bolts
MSRP $220.00
$146.52
MSRP $220.00
$146.52
20
Slim Line Seal Kit Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: Expantion Valve. 1-5/8 , 2-1/2 Slim Line Washers
MSRP $33.55
$24.14
MSRP $33.55
$24.14
21
Hex Flange Nut Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MANUAL NSG370 TRANSMISSION. All Manual Transmissions.
Description: M8x1.25x8.0. Park Brake Lever to Park Brake Sled
MSRP $4.20
$3.03
MSRP $4.20
$3.03
21
MSRP $4.30
$3.09
22
Hex Nut And Washer Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
Description: M6X1.00. Transfer Case Cable to Parking Brake Plate
MSRP $6.15
$4.42
MSRP $6.15
$4.42

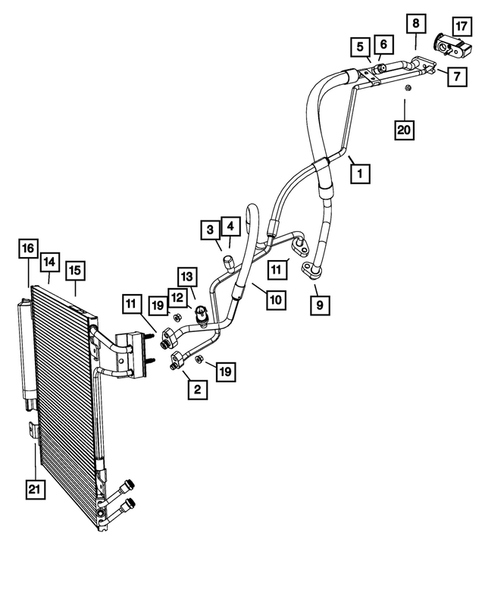

No.
Part # / Description / Price
Price
19
Hex Nut-coned Washer Nut And Washer Mopar
Mopar Description: M8 x 1.25. Liquid Line/Filter Drier to Shock Tower Mounting
MSRP $11.30
$8.17
MSRP $11.30
$8.17
20
Hex Flange Nut Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MANUAL NSG370 TRANSMISSION. All Manual Transmissions.
Description: M8x1.25x8.0. Park Brake Lever to Park Brake Sled
MSRP $4.20
$3.03
MSRP $4.20
$3.03
20
MSRP $4.30
$3.09

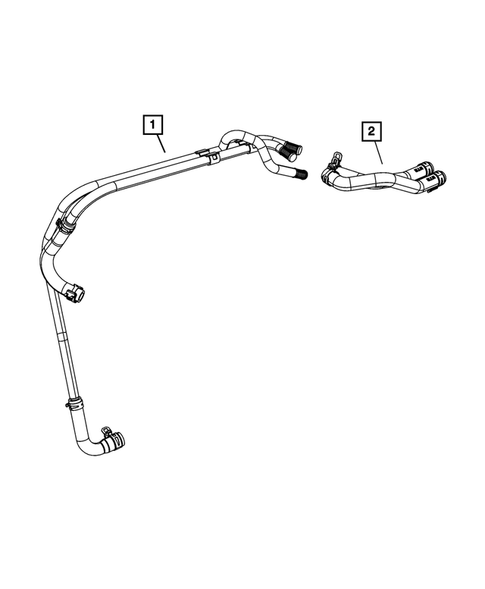

No.
Part # / Description / Price
Price
1
Heater Supply And Return Hose And Tube Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
MSRP $219.00
$144.30
MSRP $219.00
$144.30
2
Heater Core Jumper Hose Mopar
Mopar Notes: Engines: 3.0L V6 24V VVT ENGINE. 3.6L V6 24V VVT Engine.
MSRP $72.70
$50.14
MSRP $72.70
$50.14
